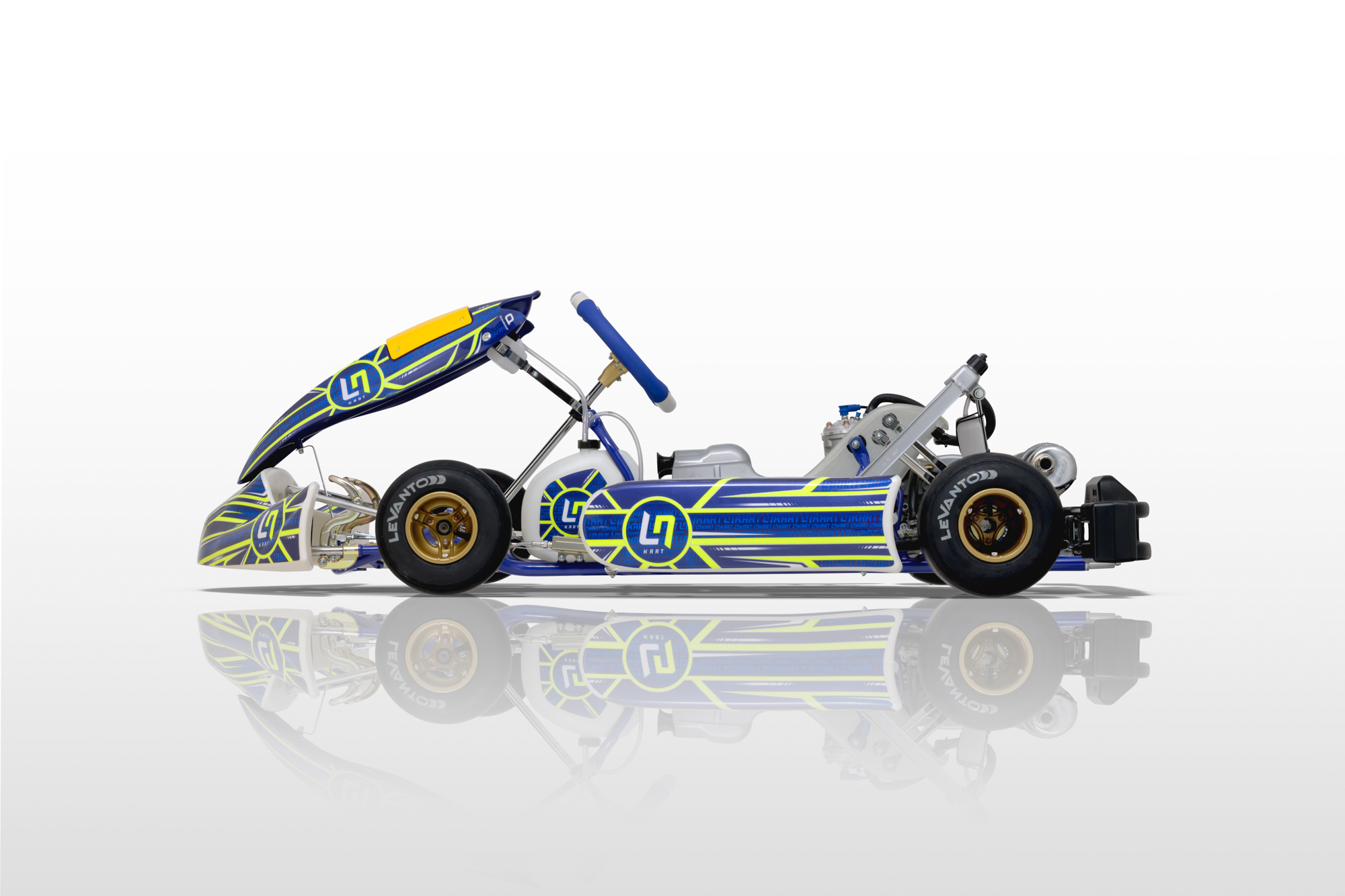

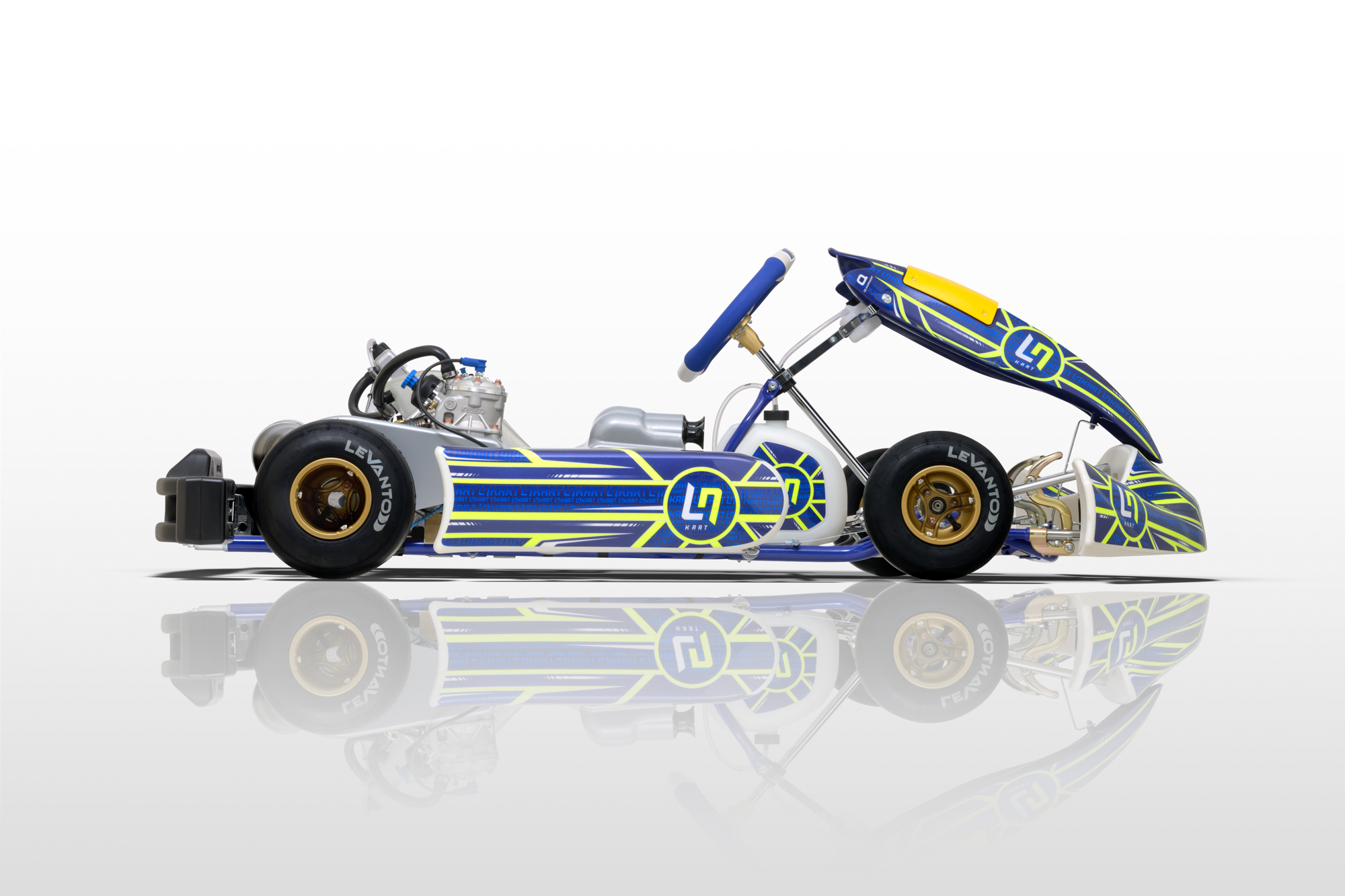

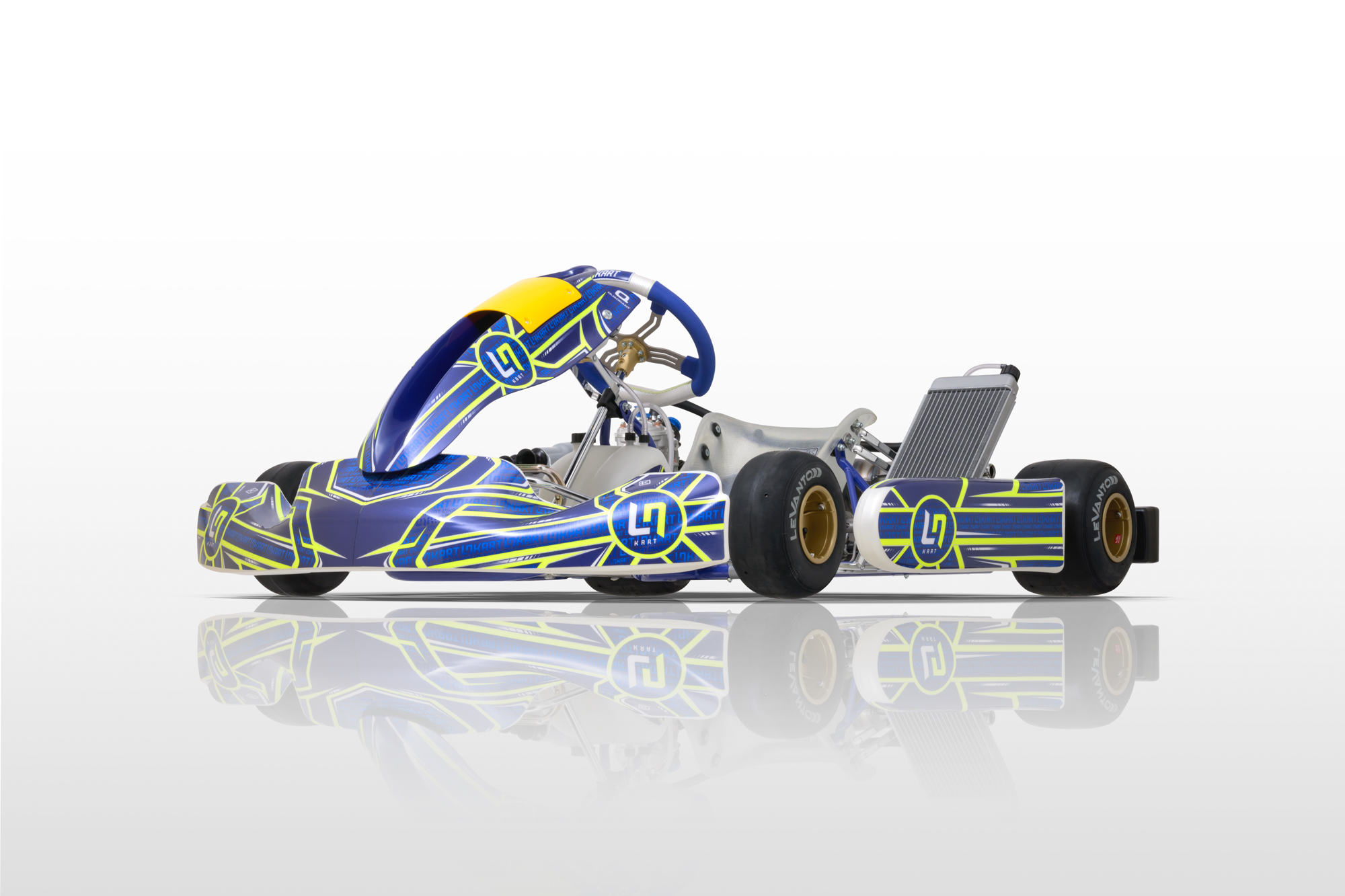

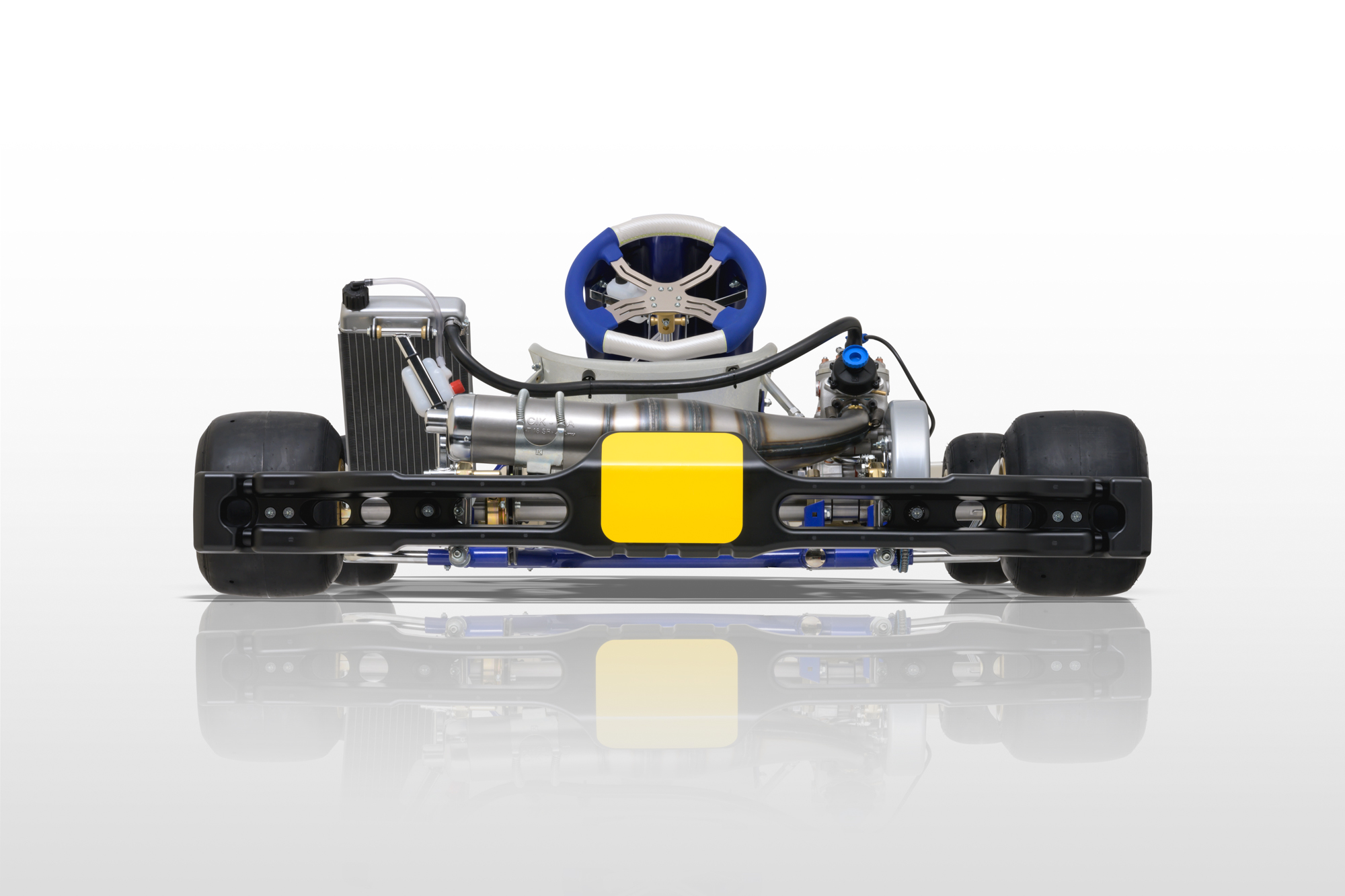

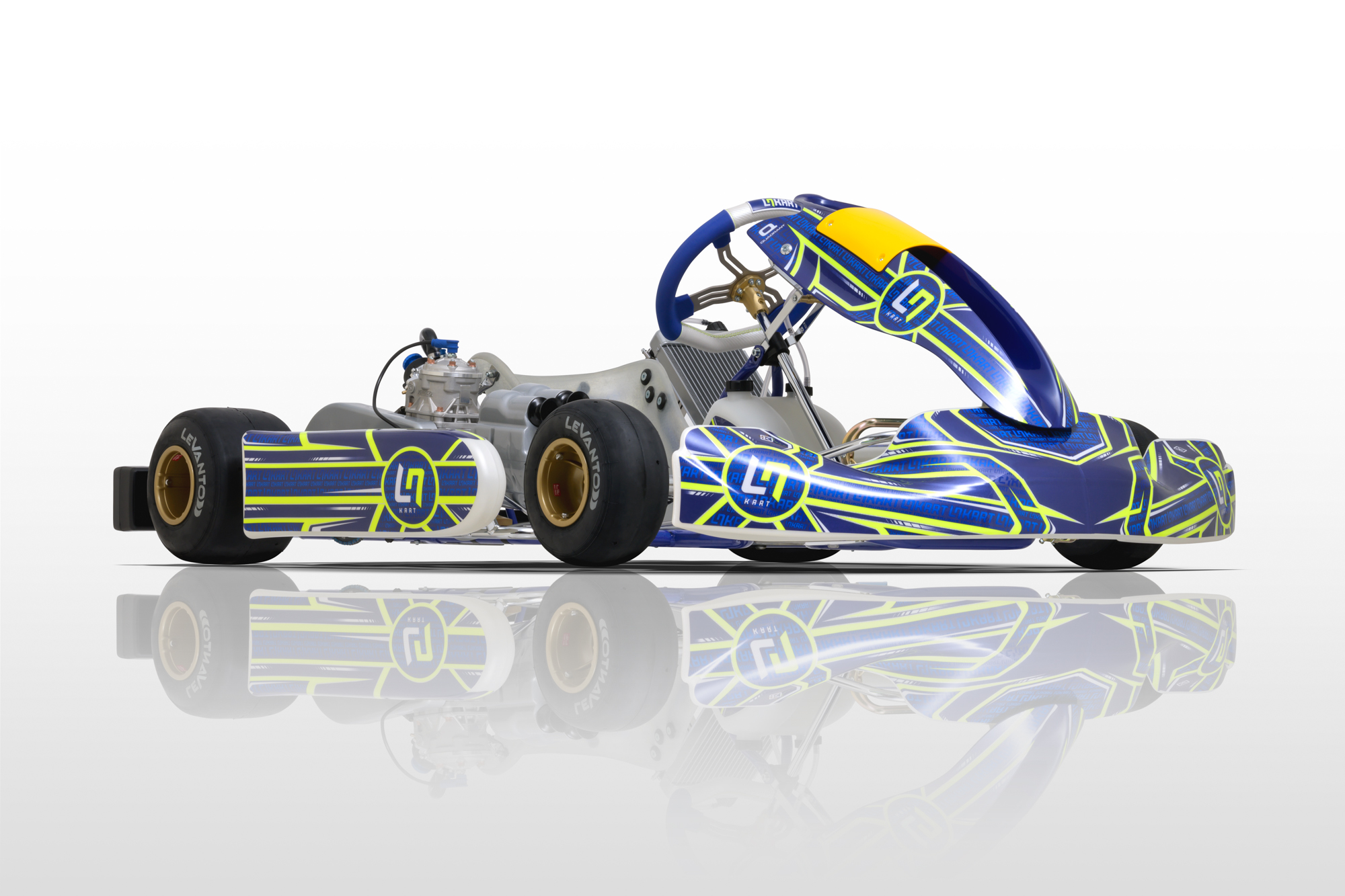

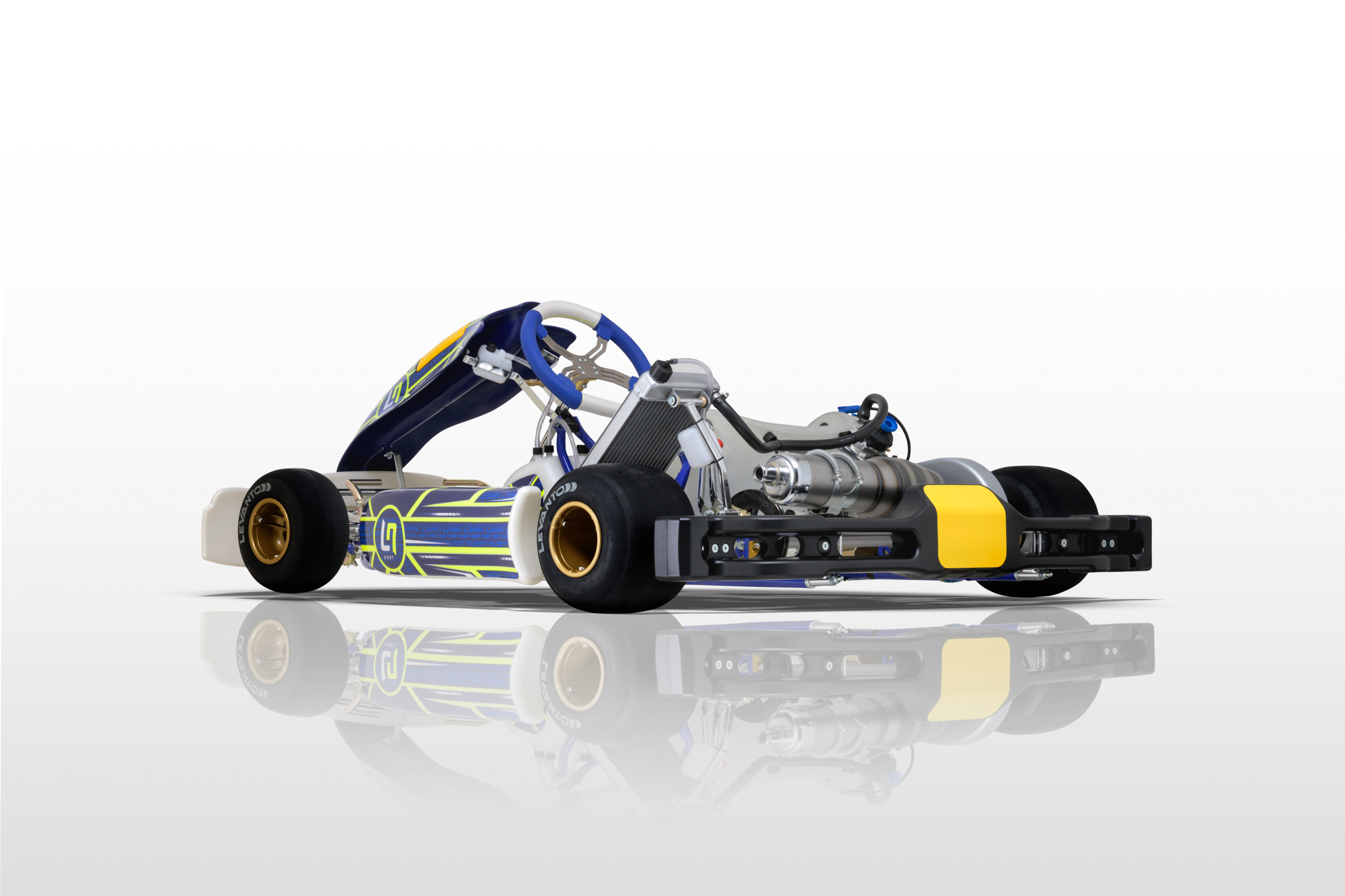

LN Racing Kart launches the new chassis, strongly inspired by the LN Four, but made with Ø 32 mm chrome molybdenum steel tubes. There are also several interesting technical solutions implemented by the OTK Kart Group R&D department.
All the features of the LN Racing Kart’s top-range model, LN Four, can be found in the new TDX: attention to every detail, maximum quality of the materials of each component and constant evolution of the product, implemented by OTK Kart Group's R&D department. The difference between the two chassis lies in the diameter of the chrome molybdenum steel tubes, Ø 32 mm for the TDX and Ø 30 mm for the LN Four, making up the frame. As for the rest, all the winning solutions of the LN Four are duplicated in the TDX, starting from the M10 fairing kit, coupled with the M7 number plate spoiler, now in blue plastic, moving on to technical solutions aimed at optimising the driving position and comfort.
All the features of the LN Racing Kart’s top-range model, LN Four, can be found in the new TDX: attention to every detail, maximum quality of the materials of each component and constant evolution of the product, implemented by OTK Kart Group's R&D department. The difference between the two chassis lies in the diameter of the chrome molybdenum steel tubes, Ø 32 mm for the TDX and Ø 30 mm for the LN Four, making up the frame. As for the rest, all the winning solutions of the LN Four are duplicated in the TDX, starting from the M10 fairing kit, coupled with the M7 number plate spoiler, now in blue plastic, moving on to technical solutions aimed at optimising the driving position and comfort.

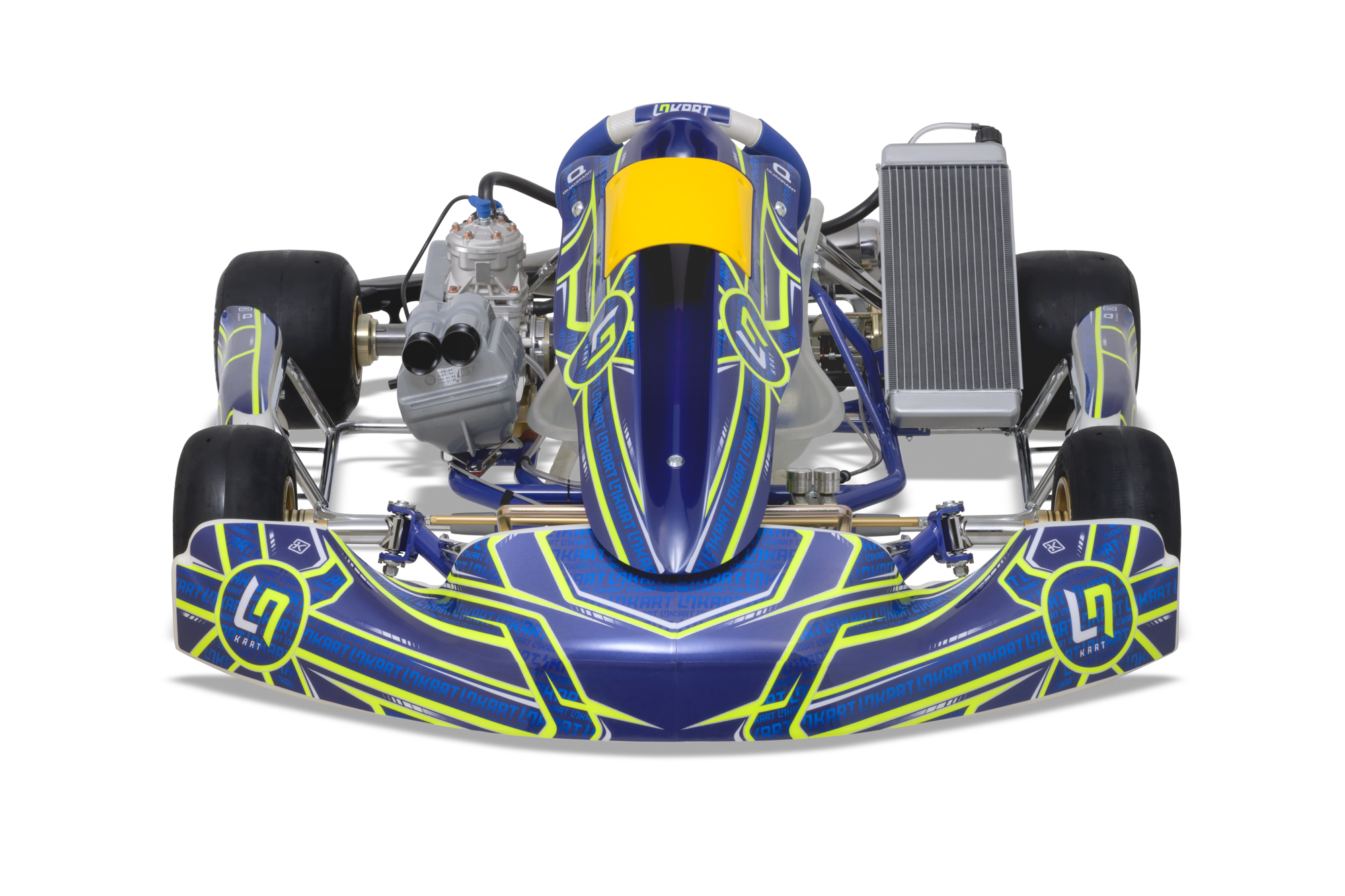

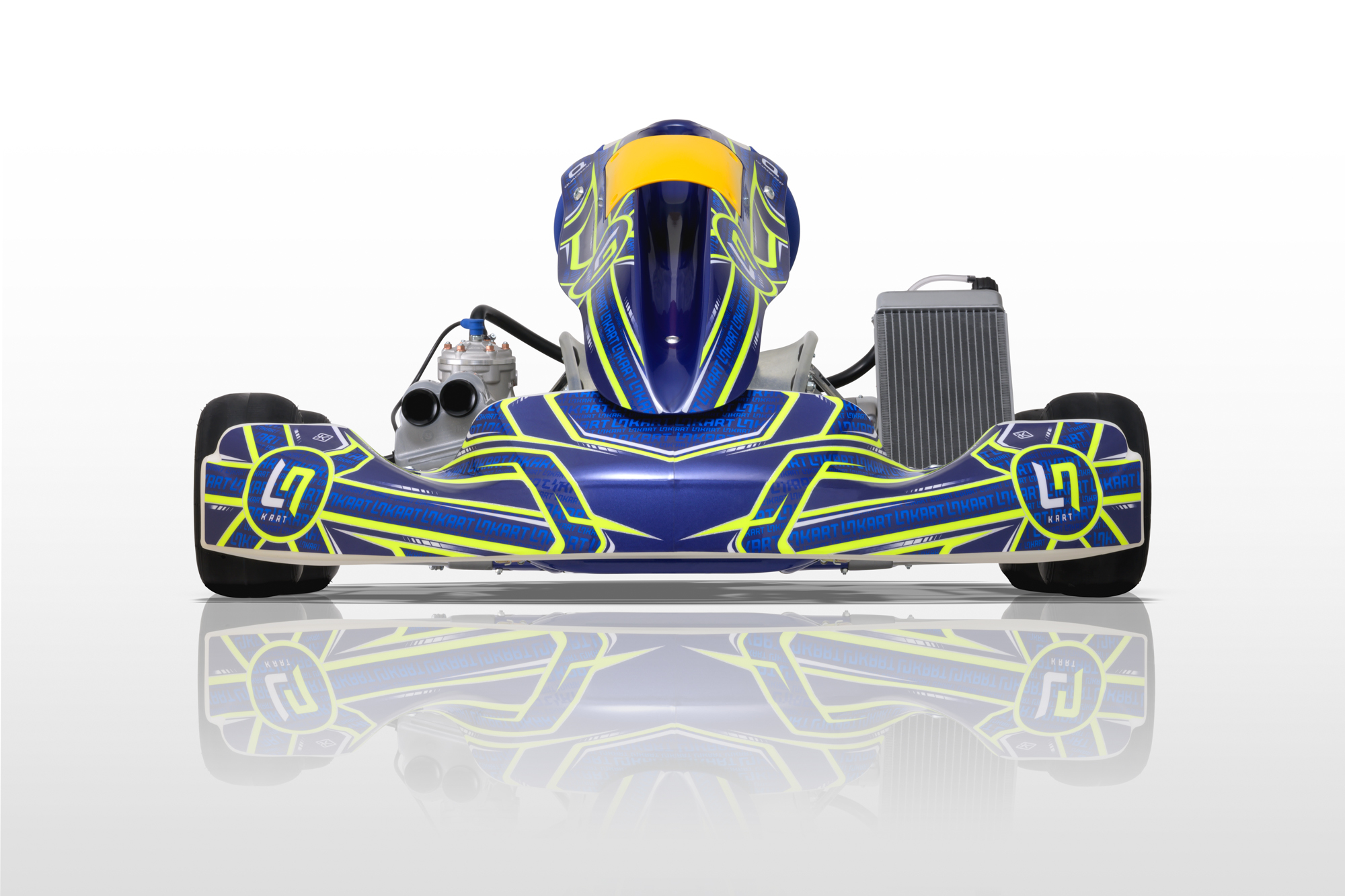

The development of the kart fairing aerodynamic efficiency is now fundamental to achieve even better performance. OTK Kart Group's R&D department has been a pioneer in this field for years, thanks to targeted wind tunnel studies and CFD computer simulations. This approach has led to the launch of revolutionary solutions, in the field of fairings, such as the M7 front spoiler. LN TDX is equipped with a M7 in blue colour and with the new M10 kit: new side bumpers, with reduced weight and dimensions, designed with the aim of increasing both aerodynamic efficiency and positively influencing the rear tyres cooling. But that's not all, because the front spoiler and the rear protection have also been renewed to meet the more and more demanding safety requirements of the FIA regulations.
The development of the kart fairing aerodynamic efficiency is now fundamental to achieve even better performance. OTK Kart Group's R&D department has been a pioneer in this field for years, thanks to targeted wind tunnel studies and CFD computer simulations. This approach has led to the launch of revolutionary solutions, in the field of fairings, such as the M7 front spoiler. LN TDX is equipped with a M7 in blue colour and with the new M10 kit: new side bumpers, with reduced weight and dimensions, designed with the aim of increasing both aerodynamic efficiency and positively influencing the rear tyres cooling. But that's not all, because the front spoiler and the rear protection have also been renewed to meet the more and more demanding safety requirements of the FIA regulations.
The LN TDX, in its single-gear version, is equipped with the BSD braking system. This is a system that has proved with results to be the technical reference point in the field. The brake caliper, with two Ø 34.5 mm pistons and stroke recovery, is forged in a single piece. Combined to this, is the brake line with outer cover stainless steel braid, PTFE inner tube. The caliper and the brake pump are made of Ergal, a material that stands out for its excellent mechanical resistance, which is further increased by the hard oxidation process that reduces wear on the moving parts.
The LN TDX, in its single-gear version, is equipped with the BSD braking system. This is a system that has proved with results to be the technical reference point in the field. The brake caliper, with two Ø 34.5 mm pistons and stroke recovery, is forged in a single piece. Combined to this, is the brake line with outer cover stainless steel braid, PTFE inner tube. The caliper and the brake pump are made of Ergal, a material that stands out for its excellent mechanical resistance, which is further increased by the hard oxidation process that reduces wear on the moving parts.
A fundamental aspect for every driver is the driving position. OTK Kart Group knows it very well and aims, in the process of developing new products, to focus on the search for solutions that favour the comfort and driver adjustment to the vehicle, without neglecting even the smallest detail. In this sense, the TDX offers new features concerning the footrest, now capable of greater movement in terms of adjustment, and the seat supports. These solutions are in addition to the already well-known HGS steering wheel, equipped with rubber grips for high grip and comfort, as well as the inclined hub, for a fully ergonomic driving position.
A fundamental aspect for every driver is the driving position. OTK Kart Group knows it very well and aims, in the process of developing new products, to focus on the search for solutions that favour the comfort and driver adjustment to the vehicle, without neglecting even the smallest detail. In this sense, the TDX offers new features concerning the footrest, now capable of greater movement in terms of adjustment, and the seat supports. These solutions are in addition to the already well-known HGS steering wheel, equipped with rubber grips for high grip and comfort, as well as the inclined hub, for a fully ergonomic driving position.
Using selected materials of the highest quality and processing them using automated machines and processes that ensure full reproducibility of each component, always guaranteeing the highest quality parameters: these are the standards of the OTK Kart Group. These features are more fundamental than ever when referring to braking systems for the shifter categories, where braking plays an even more decisive role in performance. For this reason, next to the well-known BSS system, LN Racing Kart proposes for the TDX a new system, the BSZ, equipped with brake pumps with larger diameter pistons that make braking even more modular. For the DD2 version, on the other hand, the reference system remains the BSS only.
Using selected materials of the highest quality and processing them using automated machines and processes that ensure full reproducibility of each component, always guaranteeing the highest quality parameters: these are the standards of the OTK Kart Group. These features are more fundamental than ever when referring to braking systems for the shifter categories, where braking plays an even more decisive role in performance. For this reason, next to the well-known BSS system, LN Racing Kart proposes for the TDX a new system, the BSZ, equipped with brake pumps with larger diameter pistons that make braking even more modular. For the DD2 version, on the other hand, the reference system remains the BSS only.
